Add Usage Insights canvas extension 🤖🤖🤖

[davidkaya]

Description

Adds the Usage Insights canvas as a reusable canvas extension plus a matching installable plugin.

The canvas provides current and historical GitHub Copilot token and AI-credit metrics, per-agent and sub-agent rollups, model-call details, and in-canvas history drill-down. It reads local Copilot usage data in read-only mode and does not add external session deep links.

The preview below is rendered from the real canvas using entirely synthetic sample metrics, generic session names, generic agent names, and no local user data.

What's included

• extensions/usage-insights/ — pinned extension functionality from davidkaya/github-copilot-usage-insights@206d53faab1d8a3331de96e203d0206ad21845aa, adapted to the usage-insights ID and exact Usage Insights display name.
• plugins/usage-insights/ — Agent Plugins v1.0.0 manifest registering ./extensions/usage-insights, plus installation and privacy documentation.

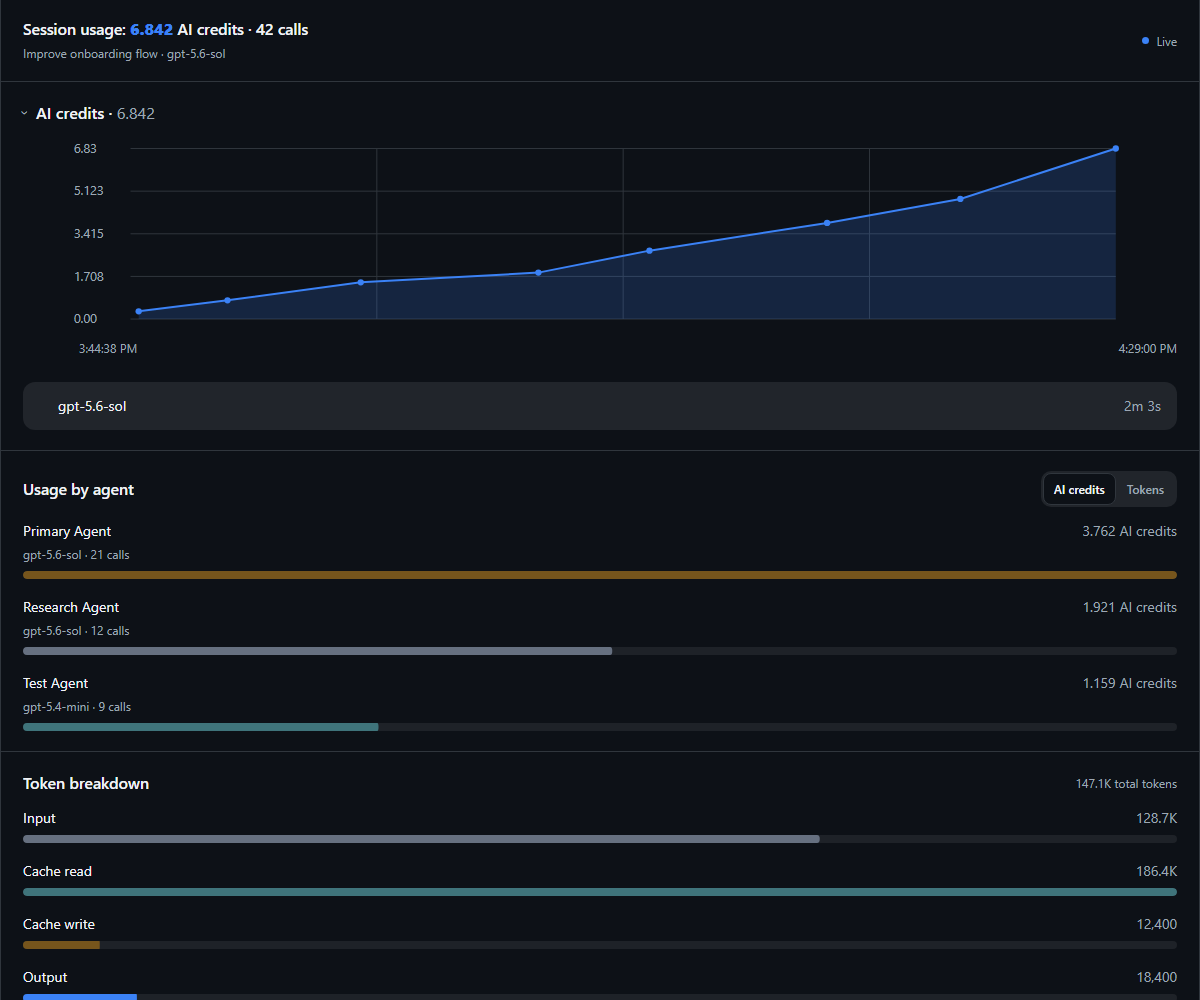

• extensions/usage-insights/assets/preview.png — polished desktop preview generated with synthetic, sanitized sample data.
• Regenerated .github/plugin/marketplace.json, docs/README.plugins.md, and website data.

Checklist

• npm ci --registry=https://packagefeedproxy.microsoft.io/npm passes
• npm run plugin:validate passes (usage-insights valid)
• npm run build regenerates marketplace + docs
• npm run website:data regenerated
• Extension syntax and composition paths verified
• Line endings normalized (LF)
• File names are lower-case-with-hyphens
• Preview image uses only synthetic and sanitized data (assets/preview.png)

[github-actions]

🔒 PR Risk Scan Results

Scanned 8 changed file(s).

Severity	Count
🔴 High	0
🟠 Medium	0
ℹ️ Info	0

✅ No matching risk patterns were detected in changed files.

Skipped non-text or missing files

• extensions/usage-insights/assets/preview.png

This is an automated soft-gate report. Findings indicate review targets and do not block merge by themselves.

[Copilot]

🟡 Changes recommended

The unauthenticated local server, path traversal risk, and several dashboard accuracy/navigation bugs must be addressed.

Once you've addressed the issues Copilot identified, you can request another Copilot review.

Pull request overview

Adds a reusable Usage Insights canvas extension and installable plugin for local Copilot usage analytics.

Changes:

• Implements read-only usage aggregation and session drill-down.
• Adds a responsive canvas UI with live refresh.
• Registers the plugin and updates generated catalogs.

File summaries

File	Description
extensions/usage-insights/extension.mjs	Defines the canvas, local server, actions, and events.
extensions/usage-insights/stats.mjs	Aggregates usage from local SQLite databases.
extensions/usage-insights/renderer.mjs	Renders the interactive metrics dashboard.
extensions/usage-insights/copilot-extension.json	Declares extension metadata.
extensions/usage-insights/README.md	Documents behavior, privacy, and requirements.
extensions/usage-insights/assets/preview.png	Provides the marketplace preview.
plugins/usage-insights/plugin.json	Registers the installable plugin.
plugins/usage-insights/README.md	Documents installation and features.
docs/README.plugins.md	Adds the plugin to documentation.
.github/plugin/marketplace.json	Adds the marketplace entry.

Review details

Suppressed comments (1)

extensions/usage-insights/renderer.mjs:755

• Cache-write tokens are collected and explicitly advertised in the extension README, but this breakdown never renders them and therefore undercounts total tokens. Add a cache-write entry to the displayed values.

      const values = [
        { label: 'Input', value: totals.inputTokens, color: 1 },
        { label: 'Cache read', value: totals.cacheReadTokens, color: 2 },
        { label: 'Output', value: totals.outputTokens, color: 3 },
        { label: 'Reasoning', value: totals.reasoningTokens, color: 5 },
      ];

• Files reviewed: 9/10 changed files
• Comments generated: 6
• Review effort level: Balanced

---

💡 Add a code-review agent skill or configure MCP servers for context-aware, tailored reviews. Learn more in the docs.

[Copilot]

🟡 Changes recommended

The renderer reuses stale bootstrap data during interaction and has accessibility and redundant-query issues.

Once you've addressed the issues Copilot identified, you can request another Copilot review.

Review details

Suppressed comments (3)

extensions/usage-insights/renderer.mjs:919

• The server already computed and embedded bootstrap, but startup ignores it and immediately repeats every dashboard query while the page remains on placeholders. Render the snapshot and clear the loading state; the existing interval can perform the next refresh.

    load();

extensions/usage-insights/renderer.mjs:541

• aria-label does not turn this generic <div> into a named control group, so screen-reader users encounter two toggle buttons without the “Agent metric” context. Give the container an explicit group role.

        <div class="segmented" id="agentMetricControl" aria-label="Agent metric">

extensions/usage-insights/renderer.mjs:563

• This range selector also needs an explicit group role; otherwise its aria-label does not provide context for the dynamically inserted toggle buttons.

        <div class="segmented" id="rangeControl" aria-label="History range"></div>

• Files reviewed: 10/11 changed files
• Comments generated: 2
• Review effort level: Balanced

[Copilot]

🟡 Changes recommended

Live totals can become stale after the first persisted call, and two responsive UI behaviors violate accessibility expectations.

Once you've addressed the issues Copilot identified, you can request another Copilot review.

Review details

Suppressed comments (1)

extensions/usage-insights/renderer.mjs:824

• This always forces animated scrolling even when the user has enabled reduced motion; the CSS media query does not override an explicit scrollTo({ behavior: 'smooth' }) option. Respect the media preference here or use non-animated scrolling.

          window.scrollTo({ top: 0, behavior: 'smooth' });

• Files reviewed: 10/11 changed files
• Comments generated: 2
• Review effort level: Balanced

[Copilot]

🟡 Changes recommended

Token totals are double-counted, optional runtime credit data can mask persisted totals, and sub-second durations are misreported.

Once you've addressed the issues Copilot identified, you can request another Copilot review.

Review details

Suppressed comments (3)

Previously missed (2) — in code that hasn't changed since the last review.

extensions/usage-insights/renderer.mjs:625

• Durations below one second are all rendered as 1s, so a 1 ms call is overstated by 1000× even though the source value is available in milliseconds. Preserve millisecond precision for sub-second calls.
  extensions/usage-insights/renderer.mjs:730
• The SDK defines reasoningTokens as a subset of outputTokens, so adding both inflates the agent's token metric whenever reasoning is present. Exclude reasoning from this sum while retaining it as a separate breakdown value.

This issue also appears on line 766 of the same file.

extensions/usage-insights/renderer.mjs:766

• This total double-counts reasoning tokens because the SDK specifies that reasoningTokens is already included in outputTokens. The displayed “total tokens” should sum only non-overlapping categories; the reasoning row can remain as an informational subset.

      const total = values.reduce((sum, entry) => sum + entry.value, 0);

• Files reviewed: 10/11 changed files
• Comments generated: 1
• Review effort level: Balanced

[Copilot]

🟡 Changes recommended

The renderer can misstate low credit totals and produce malformed agent metadata when model names are absent.

Once you've addressed the issues Copilot identified, you can request another Copilot review.

Review details

Suppressed comments (1)

extensions/usage-insights/renderer.mjs:740

• Rows with no recorded model produce metadata such as · 3 calls because the empty model string is concatenated unconditionally. Filter empty parts as the session metadata renderer already does so these rows display cleanly.

        left.append(element('span', 'agent-detail', entry.agent.models.join(', ') + ' · ' + entry.agent.calls + ' calls'));

• Files reviewed: 10/11 changed files
• Comments generated: 1
• Review effort level: Balanced

[Copilot]

🔵 Needs a closer look

Token totals currently double-count cache reads and writes, inflating displayed usage.

Review details

Suppressed comments (2)

Previously missed (1) — in code that hasn't changed since the last review.

extensions/usage-insights/renderer.mjs:731

• The per-agent “Tokens” value double-counts cached input. Copilot reports inputTokens as cache-inclusive, so adding cacheReadTokens and cacheWriteTokens inflates every agent bar (while reasoning is correctly left out because it is included in output). Use input plus output for the aggregate; keep the cache fields only as detail metrics.

This issue also appears on line 767 of the same file.

extensions/usage-insights/renderer.mjs:770

• This “total tokens” calculation double-counts cache reads and writes because inputTokens already includes both cache categories. As a result, the displayed total exceeds the actual input-plus-output usage whenever caching occurs; calculate the total from input and output only.

      const total = totals.inputTokens
        + totals.cacheReadTokens
        + totals.cacheWriteTokens
        + totals.outputTokens;

• Files reviewed: 10/11 changed files
• Comments generated: 0 new
• Review effort level: Balanced

[Copilot]

🟡 Changes recommended

Live aggregate totals can disagree with database-backed breakdowns, and an optional SDK metric currently causes stale AI-credit values.

Once you've addressed the issues Copilot identified, you can request another Copilot review.

Review details

• Files reviewed: 10/11 changed files
• Comments generated: 3
• Review effort level: Balanced

[Copilot]

🔵 Needs a closer look

An incompatible optional data.db schema can currently make every dashboard request fail.

Review details

Suppressed comments (1)

Previously missed (1) — in code that hasn't changed since the last review.

extensions/usage-insights/stats.mjs:181

• Treat data.db as optional by schema, not just by existence. Valid Copilot installations can have a sessions table without title, agent, or mode; assigning that database here makes both metadata queries throw and turns every dashboard refresh into a 500 even though session-store.db contains the required usage data. Probe the columns (or the full metadata query) and fall back to session-store metadata when the optional database is incompatible.

• Files reviewed: 10/11 changed files
• Comments generated: 0 new
• Review effort level: Balanced

[Copilot]

🟡 Changes recommended

The dashboard can fail against the current database schema, and range and timeline timestamps are handled incorrectly.

Once you've addressed the issues Copilot identified, you can request another Copilot review.

Review details

Suppressed comments (3)

Previously missed (3) — in code that hasn't changed since the last review.

extensions/usage-insights/stats.mjs:308

• SQLite's default created_at value is UTC text in YYYY-MM-DD HH:MM:SS form, which Date.parse interprets as local time in Node rather than UTC. On non-UTC systems this shifts the chart's start/end labels by the local offset. Normalize the database timestamp to an explicit UTC ISO value before passing it to JavaScript.
  extensions/usage-insights/stats.mjs:352
• assistant_usage_events.created_at uses SQLite's datetime('now') text format (YYYY-MM-DD HH:MM:SS), but the cutoff parameter is ISO text with T/Z. A raw text comparison excludes later events on the cutoff calendar day because a space sorts before T, so the 24h/7d/30d totals, agent split, and model rollups undercount that boundary day. Normalize both operands as SQLite datetimes.
  extensions/usage-insights/stats.mjs:413
• This repeats the raw mixed-format timestamp comparison for the highest-cost sessions query, so fixing the shared whereSql above would still leave the history list missing events from the cutoff day. Normalize both values here as well.

• Files reviewed: 10/11 changed files
• Comments generated: 1
• Review effort level: Balanced

[Copilot]

🔵 Needs a closer look

The substantial new loopback HTTP, UI, and local SQLite data-access surface warrants final human runtime and privacy validation.

Review details

• Files reviewed: 10/11 changed files
• Comments generated: 0 new
• Review effort level: Balanced
