CodeIgniter 4 + GridPHP Application Starter

What is CodeIgniter 4 + GridPHP Starter?

CodeIgniter is a PHP full-stack web framework that is light, fast, flexible, and secure. GridPHP is a powerful datagrid component for PHP applications.

This repository provides an official, composer-installable application starter pre-configured for integrating GridPHP with CodeIgniter 4. It simplifies datagrid setup by automatically handling assets publishing, sample SQLite database configuration in .env file and sample master-detail datagrid integration out of the box.

For more information, see:

• CodeIgniter Official Site
• CodeIgniter 4 User Guide
• GridPHP CodeIgniter Integration Guide

---

Installation & Updates

Using Composer

Run create-project to create a new project:

composer create-project gridphp/ci4-starter my-app
cd my-app

composer create-project automatically runs setup scripts that copy env → .env, fetch core GridPHP files, and publish front-end assets to public/gridphp/assets/.

Whenever there is a new release of CodeIgniter 4 or GridPHP, run:

composer update

When updating, check the CodeIgniter release notes to see if there are any changes you might need to apply to your app folder. The affected files can be copied or merged from vendor/codeigniter4/framework/app.

---

Setup & Configuration

1. Initial Configuration (app.baseURL & Environment): Open .env (automatically generated during composer create-project). Refer to CodeIgniter's Initial Configuration Guide for setup instructions:

   • Base URL: When publishing live, ensure you set app.baseURL to your domain URL (e.g., app.baseURL = 'https://example.com/'). For local development, by default it is set to app.baseURL = 'http://localhost:8080/'. This ensures base_url() properly generates asset links for GridPHP JS/CSS files.
   • Environment: Set CI_ENVIRONMENT = development while developing for debugging, and switch to CI_ENVIRONMENT = production when deploying live.

2. Database Configuration: .env is automatically created during composer create-project. GridPHP automatically connects using your CodeIgniter database configuration (app/Config/Database.php or .env).

   • By default, the database configuration is set to SQLite database in .env, it will use bundled SQLite sample database containing sample customers, orders and other tables.

     database.default.hostname =
     database.default.database = ./writable/db/database.db
     database.default.username =
     database.default.password =
     database.default.DBDriver = SQLite3

   • To connect to MySQL / MariaDB, edit your .env:

     database.default.hostname = localhost
     database.default.database = my_database
     database.default.username = root
     database.default.password = secret
     database.default.DBDriver = MySQLi

3. Publish GridPHP Assets (Automated): Composer automatically copies GridPHP JS & CSS assets into public/gridphp/assets/ during install/update. You can manually run it anytime:

   composer run gridphp:publish

4. Run Local Server:

   php spark serve

   Visit http://localhost:8080 in your browser.

---

Grid Workflows

Below are step-by-step walkthroughs demonstrating how to build a basic single-table grid ("Hello World") and an advanced Master-Detail grid.

---

Walkthrough 1: "Hello World" Grid (Single Table, Minimal Setup)

This walkthrough creates a simple, zero-configuration datagrid bound directly to a database table with no extra bells and whistles.

1. Controller (app/Controllers/Home.php)

namespace App\Controllers;

class Home extends BaseController
{
    public function index(): string
    {
        // Initialize GridPHP with CI4 database config
        $g = new \jqgrid(config('GridPHP')->dbconf());

        // Set table name
        $g->table = 'customers';

        // Render grid HTML and JavaScript snippet
        $data['output'] = $g->render('my_first_grid');

        // Pass output to view
        return view('hello_grid', $data);
    }
}

2. View (app/Views/hello_grid.php)

Include GridPHP scripts/styles in your view header and output $output:

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Hello World Grid</title>

    <!-- GridPHP Assets -->
    <link rel="stylesheet" type="text/css" media="screen" href="<?= base_url('gridphp/assets/themes/base/jquery-ui.custom.css') ?>">
    <link rel="stylesheet" type="text/css" media="screen" href="<?= base_url('gridphp/assets/jqgrid/css/ui.jqgrid.css') ?>">

    <script src="<?= base_url('gridphp/assets/jquery.min.js') ?>"></script>
    <script src="<?= base_url('gridphp/assets/jqgrid/js/i18n/grid.locale-en.js') ?>"></script>
    <script src="<?= base_url('gridphp/assets/themes/jquery-ui.custom.min.js') ?>"></script>
    <script src="<?= base_url('gridphp/assets/jqgrid/js/jquery.jqGrid.min.js') ?>"></script>
</head>
<body>

    <div style="margin: 20px;">
        <h2>Hello World Datagrid</h2>
        <?= $output ?>
    </div>

</body>
</html>

---

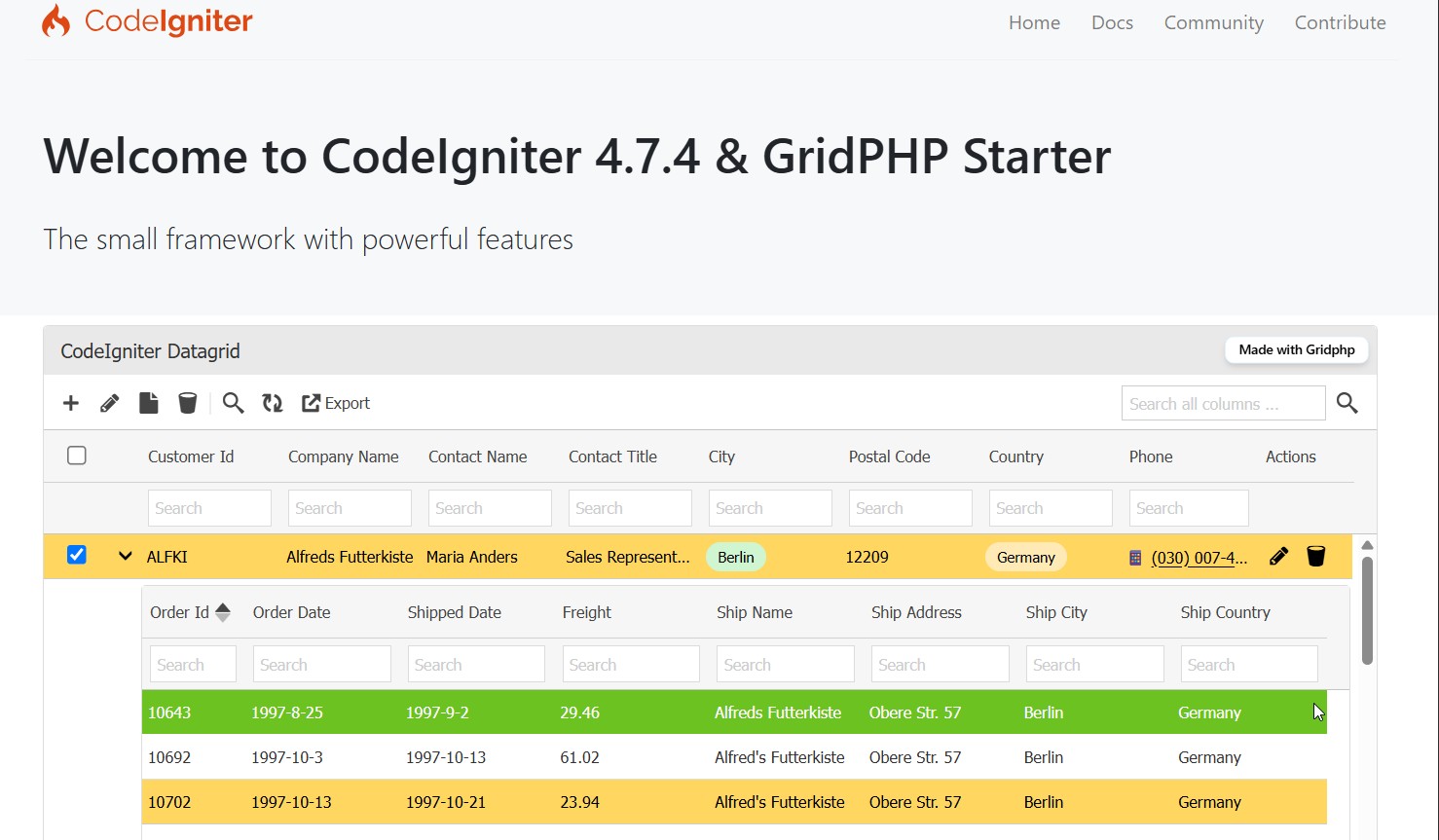

Walkthrough 2: Master-Detail Grid (Subgrid & Advanced Features)

This walkthrough demonstrates a feature-rich Master Grid linked to a Detail Subgrid via an AJAX endpoint.

1. Controller for Master & Detail (app/Controllers/Home.php)

namespace App\Controllers;

class Home extends BaseController
{
    // Master Grid Page
    public function index(): string
    {
        $g = new \jqgrid(config('GridPHP')->dbconf());

        // Configure Master Grid Options
        $g->set_options([
            'caption'     => 'Customer Directory (Master)',
            'multiselect' => true,
            'subGrid'     => true,
            'subgridurl'  => 'detail', // Subgrid AJAX endpoint
        ]);

        $g->table = 'customers';
        $g->select_command = 'SELECT customer_id, company_name, contact_name, city, country FROM customers';

        // Column Formatters
        $g->set_columns([
            ['name' => 'country', 'formatter' => 'badge'],
            ['name' => 'city',    'formatter' => 'badge'],
        ], true);

        // Actions: Export, Edit, Delete
        $g->set_actions([
            'export' => true,
            'add'    => true,
            'edit'   => true,
            'delete' => true,
        ]);

        $data['output'] = $g->render('master_customers');

        return view('welcome_message', $data);
    }

    // Detail Subgrid Endpoint (AJAX payload)
    public function detail(): string
    {
        $g = new \jqgrid(config('GridPHP')->dbconf());

        $g->set_options([
            'caption'  => '',
            'readonly' => true,
            'toolbar'  => 'bottom',
        ]);

        $g->table = 'orders';

        // Filter detail records by rowid passed from parent row
        $customerId = $this->request->getGet('rowid') ?? '';
        $g->select_command = "SELECT order_id, order_date, shipped_date, freight, ship_name FROM orders WHERE customer_id = '{$customerId}'";

        // Return raw rendered subgrid for AJAX injection
        return $g->render('detail_orders');
    }
}

2. Routes (app/Config/Routes.php)

Ensure routes are registered both get and post for master and detail endpoint:

// for fetching data
$routes->get('/', 'Home::index');
$routes->get('detail', 'Home::detail');

// for CRUD operations
$routes->post('/', 'Home::index');
$routes->post('detail', 'Home::detail');

3. View (app/Views/welcome_message.php)

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Master-Detail Grid</title>

    <!-- GridPHP CSS & JS Assets -->
    <link rel="stylesheet" type="text/css" media="screen" href="<?= base_url('gridphp/assets/themes/base/jquery-ui.custom.css') ?>">
    <link rel="stylesheet" type="text/css" media="screen" href="<?= base_url('gridphp/assets/jqgrid/css/ui.jqgrid.css') ?>">

    <script src="<?= base_url('gridphp/assets/jquery.min.js') ?>"></script>
    <script src="<?= base_url('gridphp/assets/jqgrid/js/i18n/grid.locale-en.js') ?>"></script>
    <script src="<?= base_url('gridphp/assets/themes/jquery-ui.custom.min.js') ?>"></script>
    <script src="<?= base_url('gridphp/assets/jqgrid/js/jquery.jqGrid.min.js') ?>"></script>
</head>
<body>

    <div class="container" style="padding: 20px;">
        <h1>Master-Detail Datagrid</h1>
        <?= $output ?>
    </div>

</body>
</html>

---

Directory & File Overview

• app/Config/GridPHP.php: Bridge configuration connecting CI4 database settings to GridPHP.
• app/Controllers/Home.php: Controller featuring master and detail grid methods.
• app/Views/welcome_message.php: View file loading GridPHP styles/scripts and displaying grid output.
• app/Config/Routes.php: Added routes for grid examples.
• writable/db/database.db: SQLite database for sample data
• public/gridphp/assets/: Published GridPHP front-end dependencies (JS, CSS, Themes).
• composer_script.php: Automated script for environment setup, file downloads, and asset publishing.

Troubleshooting

From the official doc:

• "Whoops! We seem to have hit a snag" → check write permissions for webuser on writable/logs.
• Make sure PHP's intl and curl extensions are installed (required by CodeIgniter 4).
• SQLite path: make sure the sqlite3 PHP extension is enabled (php -m | grep sqlite).

---

Community & Support

• GridPHP Documentation
• GridPHP Support Forum
• CodeIgniter 4 Forum
• CodeIgniter 4 Slack Community

---

License

• Scaffold & Starter Code: MIT License.
• CodeIgniter 4 Framework: MIT License.
• GridPHP Library: Subject to GridPHP licensing (Free / Commercial). See gridphp.com/compare for details.
