react-native-pose-detection

Real-time human pose detection for React Native and Expo.

33 body landmarks per frame, detected and drawn entirely in the native layer, powered by MediaPipe. Works in Expo and bare React Native projects alike. Nothing crosses the bridge until you ask.

Installation · Quick start · Do more · API · Example · Docs

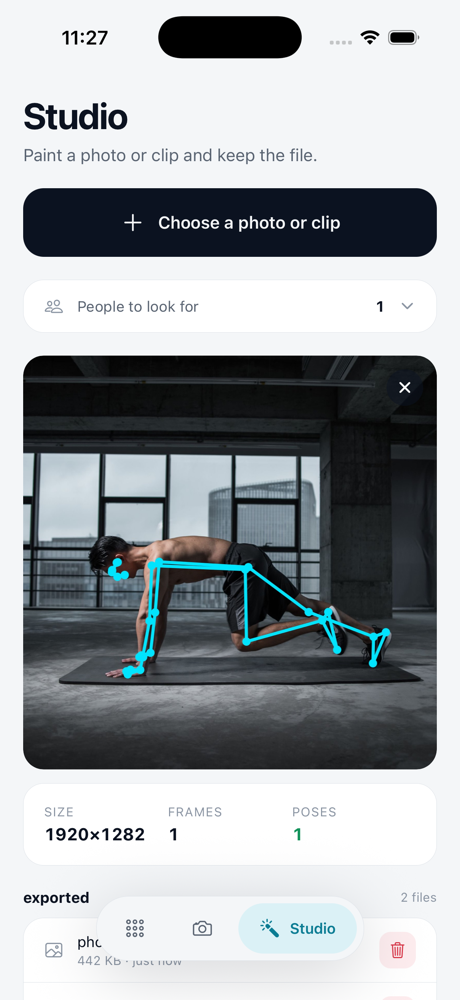

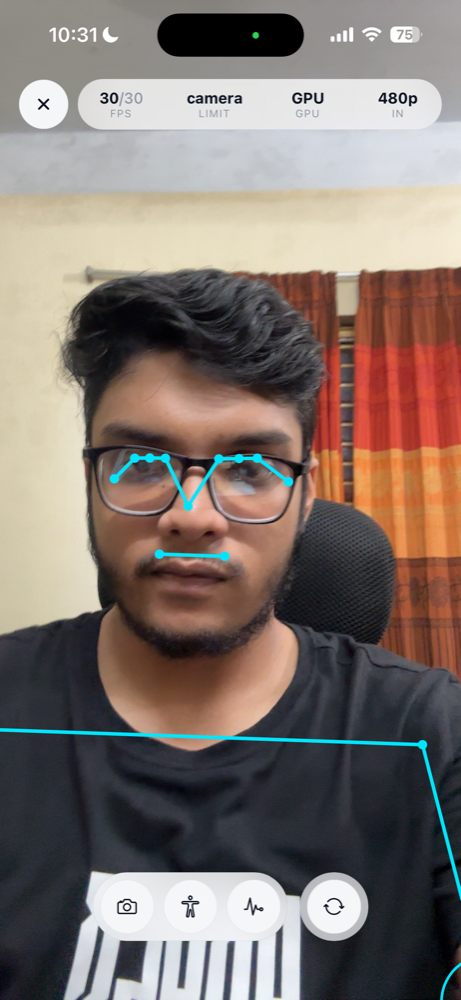

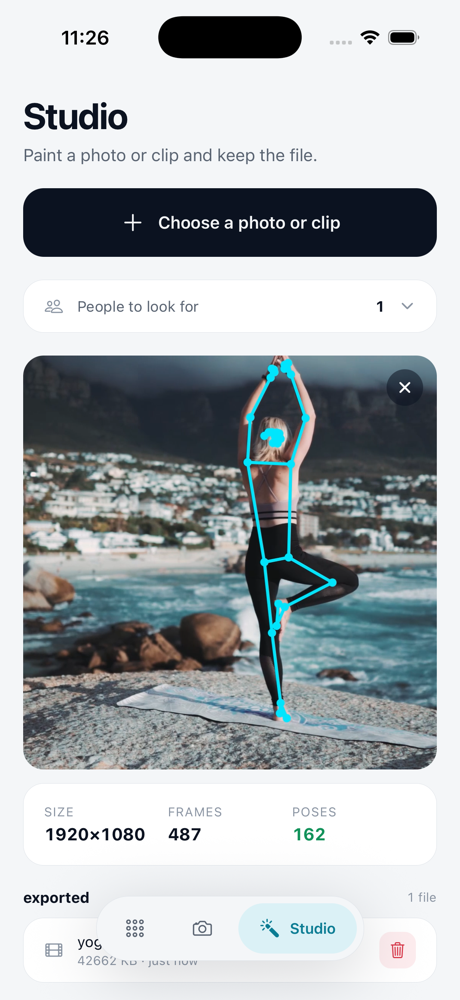

Snaps from the example app

Why this one

• One component. <PoseCamera /> opens the camera, finds the body and draws the skeleton.
• Joint angles built in. Knee, elbow, hip and more: twelve angles, measured and drawn natively.
• Native triggers. Rep counting runs on the camera thread; you get one event per rep.
• No bridge traffic by default. Landmarks reach JavaScript only when you ask for them.
• Tunes itself. 30 fps when the phone keeps up, backing off for heat, battery and an empty frame.
• Photos and videos too. Landmarks from files, or a copy with the skeleton painted in.
• Expo or bare, zero runtime dependencies. Models are downloaded and verified at build time.

Supported versions

react-native-pose-detection	Expo SDK	React Native	iOS	Android
0.2.x	56 and later	0.85 and later	16.4	7.0 (API 24)

Expo Go cannot load native code, so use a development build. The JavaScript is about 70 KB.

Installation

One package, two setups. Both end in the same place: the model inside your native projects and the camera permission declared.

Expo

npx expo install react-native-pose-detection

In app.json, add the config plugin:

{
  "expo": {
    "plugins": [
      [
        "react-native-pose-detection",
        {
          "model": "full", // 'lite' | 'full' | 'heavy'
          "cameraPermissionText": "We use the camera to analyze your movement."
        }
      ]
    ]
  }
}

npx expo prebuild

The plugin installs the model into both native projects and writes the camera permission into Info.plist and AndroidManifest.xml for you. Nothing downloads at runtime.

Expo Go is not supported: this package contains native code, so use a development build.

Bare React Native

npm i react-native-pose-detection expo@56   # expo@57 on React Native 0.86
npx react-native-pose-detection fetch-model full

expo provides the autolinking that links this Expo module; it does not make your app an Expo app. Each Expo SDK is built for one React Native, hence the pinned version. If your app already has expo, install the package alone: a version named in the command replaces the one you have. An app that does not use Expo modules yet wires that autolinking into its native projects once: the steps. If your app uses other Expo packages too, npx expo install --check checks each of them against your SDK; doctor only compares expo with React Native.

Starting a new app? npx create-expo-app@latest MyApp --template bare-minimum skips that wiring: it creates a bare app with Expo modules already set up, on the React Native the newest Expo SDK is built for. The React Native CLI's default can have no SDK at all, since Expo skips some versions, such as 0.87.

On iOS, set the deployment target to 16.4 in the Podfile and the Xcode target, and add the camera permission to ios/<YourApp>/Info.plist:

<key>NSCameraUsageDescription</key>
<string>We use the camera to analyze your movement.</string>

On Android, the camera permission comes from this package's own manifest.

Either setup can be verified with npx react-native-pose-detection doctor, which checks the install, including the Expo SDK against React Native, and names anything missing. Every step, including EAS and release builds: installation guide.

Choosing a model

Exactly one ships, whichever you pick. Changing it is one word in the config plus a rebuild.

Model	Best for
lite	budget devices, the highest frame rates
full (default)	most apps: the accuracy and cost balance
heavy	accuracy-critical work on flagship hardware

On a budget Android phone, ship lite: a Redmi Note 12 runs full at about 10 fps and lite at about 15. Sizes and the full trade-off table: app size.

Quick start

App.tsx

import { PoseCamera, useCameraPermission } from 'react-native-pose-detection';

export default function App() {
  const permission = useCameraPermission();
  if (!permission.granted) return null;

  return <PoseCamera style={{ flex: 1 }} />;
}

That is a live camera with a tracked skeleton, tuned to the device, zero bridge traffic.

Do more

Count reps without streaming a single coordinate. The condition runs on the camera thread; you hear about it once per rep:

<PoseCamera
  triggers={[
    {
      id: 'squat',
      enter: { angle: 'leftKnee', below: 90 },
      exit: { angle: 'leftKnee', above: 160 },
      emit: 'cycle',
      debounceMs: 300,
    },
  ]}
  onTrigger={(e) => setReps(e.count)}
/>

Read landmarks when you actually want them, as typed arrays from one shared buffer:

<PoseCamera
  data={{ mode: 'throttled', throttleMs: 100, angles: ['leftKnee'] }}
  onPose={(frame) => {
    // frame.landmarks is a Float32Array of [x, y, z, visibility] per joint
    setKneeAngle(frame.angles?.leftKnee);
  }}
/>

Paint a photo or video into a full-quality copy, without slowing the live camera:

import { exportPose } from 'react-native-pose-detection';

const { uri } = await exportPose(videoUri, { directory: 'documents' }).result;

It tunes itself

The package measures inference on each phone and runs at the camera's 30 fps when the phone keeps up with room to spare. Heat halves the rate and then pauses it, Low Power Mode caps it, and an empty frame drops it to an idle search. getProfile() says why:

await cam.current?.getProfile();
// { phase: 'settled', tier: 'high',
//   resolved: { delegate: 'GPU', targetFps: 30, preview: '1080p', analysis: '480p' },
//   p50InferenceMs: 16.2, measuredFps: 30, limitedBy: 'camera', thermalState: 'nominal' }

Override any axis with profile, targetFps, resolution, analysisResolution, delegate or thermalPolicy.

The whole surface at a glance

Every prop on one component. All of them optional; an explicit value pins that axis and the rest stay automatic.

<PoseCamera
  ref={cam}
  style={{ flex: 1 }}
  // camera
  facing="front"                    // 'auto' | 'front' | 'back'
  active={isFocused}                // the whole session on/off
  detection={true}                  // inference on/off; off parks the model
  resolution="auto"                 // preview: '480p' | '720p' | '1080p'
  // detection
  maxPoses={1}                      // 1 to 5
  minConfidence={0.6}               // what counts as a body
  smoothing="auto"                  // off for one pose, which MediaPipe smooths already
  // performance
  profile="auto"                    // 'efficient' | 'balanced' | 'quality' | 'unrestricted'
  targetFps="auto"                  // a number replaces the governed rate
  analysisResolution="auto"         // what the model sees: '360p' | '480p' | '720p'
  delegate="auto"                   // 'gpu' | 'cpu'
  thermalPolicy="adaptive"          // 'critical-only' | 'off'
  // drawing, all native
  overlay={{
    color: '#00E5FF',
    lineWidth: 3,
    pointRadius: 4,
    angles: [{ joint: 'leftKnee' }, { joint: 'rightKnee' }],
  }}
  // data out, off unless asked
  data={{ mode: 'throttled', throttleMs: 100, select: ['leftKnee', 'rightKnee'] }}
  triggers={[squatTrigger]}
  logLevel="off"
  // events
  onReady={(e) => console.log(e.delegate, e.targetFps)}
  onError={(e) => console.warn(e.code, e.message)}
  onCameraChange={(e) => setFacing(e.facing)}
  onPerformanceChange={(e) => console.log(e.reason, e.targetFps)}
  onTrigger={(e) => setReps(e.count)}
  onPose={(frame) => setFrame(frame)}
  onLog={(entries) => entries.forEach((e) => console.log(e.message))}
/>

Prop	Default	What it does
style	none	View style; { flex: 1 } is the usual answer
facing	'auto'	Which lens, 'front' or 'back'; auto prefers front
active	true	Camera session on/off
detection	true	Inference on/off; false stops it at once and frees the model after a minute
overlay	true	The skeleton; boolean or a config object
smoothing	'auto'	One Euro filter: off for one pose, on for several; boolean or { minCutoff, beta }
maxPoses	1	Detection ceiling, 1 to 5
minConfidence	unset = auto	What counts as a body, 0.1 to 1; unset follows maxPoses: 0.6 for one person, 0.3 above
profile	'auto'	Performance envelope: 'efficient' 'balanced' 'quality' 'unrestricted'
targetFps	'auto'	Inference rate; a number replaces the governed rate, capped by the camera
resolution	'auto'	Preview: '480p' '720p' '1080p'
analysisResolution	'auto'	What the model sees: '360p' '480p' '720p'
delegate	'auto'	Inference engine, 'gpu' or 'cpu'; auto probes and falls back
thermalPolicy	'adaptive'	Heat response: 'critical-only' or 'off'; off never stops reporting
data	{ mode: 'off' }	What crosses to JavaScript: 'throttled' 'batched' 'live'
triggers	[]	Native conditions, validated at render
logLevel	'off'	Diagnostics, 'error' through 'trace', global or per category
onReady … onLog	none	Callbacks: lifecycle, errors, performance, triggers, frames, logs

Exact types, clamping rules and edge behavior: <PoseCamera> reference.

Events

Callback	Fires	Carries
onReady	the camera is up and the model running or failed to start, once per session	delegate, model, targetFps, sizes
onError	something failed; fatal says whether the camera or detection stopped	code, message, fatal
onCameraChange	a lens switch finished	facing
onPerformanceChange	the rate or the delegate moved, or heat or Low Power Mode changed	reason, targetFps, delegate, limitedBy
onTrigger	a trigger entered, exited or completed a cycle	id, phase, count, durationMs
onPose	a frame, with data.mode 'throttled' or 'live'	a PoseFrame
onPoseBatch	frames, with data.mode: 'batched'	PoseFrame[]
onFramesDropped	your frame handler fell behind	a count
onLog	diagnostic entries, while logging is on	LogEntry[]

Every error code, and which ones stop the camera: error codes.

Ref methods

const cam = useRef<PoseCameraRef>(null);
// <PoseCamera ref={cam} />
await cam.current?.switchCamera();

Method	Does
switchCamera(), setFacing(facing)	flips the lens or picks one, resolving once the new one delivers
pause(), resume()	stops and restarts the camera session
startDetection(), stopDetection()	turns inference on and off with the preview still running
setOverlayEnabled(enabled)	shows or hides the skeleton
setProfile(profile), getProfile()	picks a performance profile; reads what was measured and why
getState()	facing, rate, delegate and more, synchronously
snapshot()	the current frame, whatever data.mode is

Guarantees and edge cases: ref methods reference.

Triggers

A trigger is a condition checked natively on every frame, sending one onTrigger event when it starts or stops holding. Conditions read angle, landmarkX, landmarkY, velocityX, velocityY or visibility, and combine with all and any; emit is 'enter', 'exit', 'cycle' or 'while'. Guide: triggers · every field: trigger schema.

Functions

import { detectOnImage, exportPose, useCameraPermission } from 'react-native-pose-detection';

Function	Does
detectOnImage(uri, options?)	landmarks from a photo
detectOnVideo(uri, options?)	landmarks from a video, sampled and cancellable
exportPose(uri, options?)	a copy of a photo or video with the skeleton painted in
useCameraPermission(options?)	the camera permission as React state
getCameraPermission(), requestCameraPermission()	reads the permission, or asks for it
validateTriggers(), assertValidTriggers()	checks trigger configs before they render
landmark(), isVisible() and the other accessors	read one joint out of a PoseFrame
setLogLevel(), addLogListener()	the diagnostic log channel

Every export on one page, constants included: functions reference.

Documentation

Every guide is also on the searchable documentation site. Read them in this order:

Guide	Covers
Getting started	Install, first camera, first data
Installation	Expo, bare RN, EAS, release builds
Camera control	Lenses, switching, pausing, lifecycle
Triggers	Count reps and detect positions natively
Data delivery	Landmarks in JavaScript, modes and their cost
Photos and video files	Landmarks from files, painted copies
What you can build	Worked triggers for squats, holds and jumps
Performance	Profiles, heat, battery, app size
Troubleshooting	Real problems, and the log channel

Reference	Covers
<PoseCamera> props	Every prop, its default and its range
Events	Every callback, its payload, every error code
Ref methods	switchCamera, snapshot, getProfile, …
Functions	Files, permission, validation, accessors, logging
Types	PoseFrame, joint names, the wire format
Trigger schema	Conditions, emit modes, validation rules
Camera permission	The four states, and why blocked is not denied
Config plugin	app.json options
CLI	fetch-model, doctor, clear-cache

The example app runs all of it, once as an Expo app and once as a bare one.

Alternatives

• VisionCamera with an ML Kit pose plugin, such as react-native-vision-camera-v3-pose-detection: a fit for an app already built on VisionCamera frame processors. You add a worklets runtime and draw the skeleton yourself, and the pose plugins were last published in 2024.
• @thinksys/react-native-mediapipe: MediaPipe in a native view, MIT licensed, the closest in approach to this one.
• TensorFlow.js with @tensorflow/tfjs-react-native: MoveNet or BlazePose from JavaScript over WebGL. Its React Native adapter has had no release since November 2023.
• QuickPose: a commercial SDK with ready-made exercises and rep counting.

Contributing

Issues and PRs are welcome, especially device reports from hardware we have not measured. Start with contributing.

License

MIT © khalid999devs
